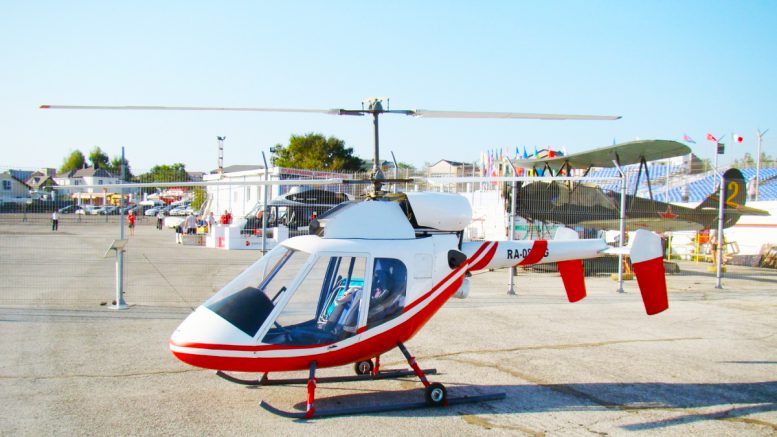

Experimental Rotorfly RI 30 Eaglet Helicopter

Rotorfly RI 30 Eaglet Experimental Helicopter

RI-30 Eaglet Coaxial Helicopter

The Russian Victor Hribkov was the original designer of the Kumertau Rotorfly, with Kumertau being the name of the aero club he joined as a delta flyer before he became more interested in helicopters.

The development process took place in the first half of the 2000s, and the goal was to produce an ultra light, kit built helicopter – the Rotorfly RI 30 Eaglet Helicopter.

The RI 30 Eaglet “Dual Rotor” Helicopter : The patent pending dual-rotor-system provides maneuverability and performance, together with the best efficiency on the market. Powered by a Rotax 914 turbo power mounted in a similar position to commercial helicopters is a novel idea. Great looking with superb performance.

Rotorfly RI 30 Eaglet Helicopter Design and Development

The machine was presented to the public for the first time at the Moscow Air Show in 2005. Unfortunately, selling the helicopter proved to be difficult because it had to be built by the buyer. It was for this reason that a deal was made with Kamov (2008), which now builds the Rotorfly on a custom order basis only and delivers it as ready-to-fly.

Rotorfly RI 30 Eaglet Helicopter General Characteristics

• MANUFACTURER: Kumertau Kamov
• TYPE/MODEL: Rotorfly / RI 30 Eaglet
• INTRODUCED: 2/1/2008
• IN PRODUCTION: Yes
• UNITS PRODUCED: 10+
• LENGTH OVER ALL (LOA): 17.39 ft
• LENGTH:
• HEIGHT: 8.53 ft
• WIDTH: 5.25 ft

Rotorfly RI 30 Eaglet Helicopter Dynamic Systems

Advanced coaxial helicopter design – Credit: see photo

Rotorfly RI 30 Eaglet Helicopter General Specifications

• FUEL CAPACITY:
• NUMBER OF ENGINES: 1
• ENGINE TYPE: Piston
• ENGINE MODEL: Rotax 912ULS
• HORSEPOWER: 100
• ROTORHEAD: Co-axial, hingless blade mount, teetering
• NUMBER OF ROTORBLADES:
• ROTOR DIAMETER: 19.69 ft
• NUMBER OF TAIL ROTORBLADES: 0
• TAILROTOR DIAMETER: N/A

Rotorfly RI 30 Eaglet Helicopter Design Features

• Skid type landing gear
• Pod and boom structure
• Welded tubes airframe structure
• Glassfibre fuselage

Rotorfly RI 30 Eaglet Helicopter Performance

• CREW: One
• CAPACITY: One passenger
• MAXIMIUM RANGE: km (311 mi)
• CRUISING SPEED: km/h (87 mph; kn)
• MAXIMUM SPEED: 170 km/h (106 mph; 92 kn)
• RATE OF CLIMB (ROC):
• HOGE Ceiling:
• SERVICE CEILING: 13123 ft
• EMPTY WEIGHT: kg (551 lb)
• GROSS WEIGHT: kg (1102 lb)
• USEFUL LOAD: kg (551 lb)

VIDEO : Rotorfly RI 30 Eaglet Helicopter history – development – flight tests

Courtesy: Helistart

The latest design version of the Rotorfly by DEA Helicopters

Early Rotorfly helicopter flight testing – see photo for credit.
